High-Performance Double Shaft Shredder for Efficient Plastic, Metal, and Tire Recycling

Double Shaft Shredder | High-Capacity Shredding Solutions

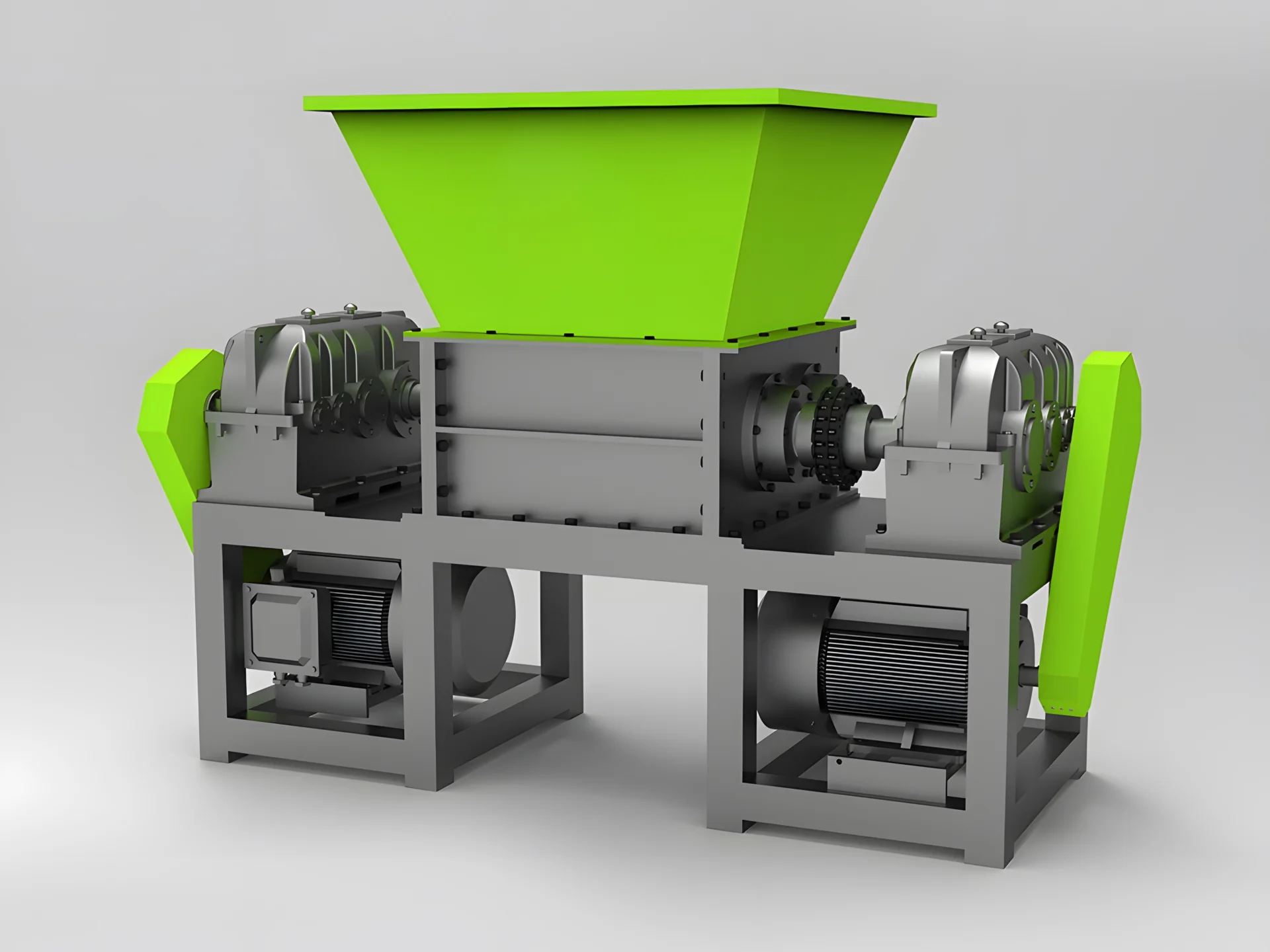

Shear Type Double Shaft Shredder

Our double shaft shredders are designed for high-capacity shredding of various materials, including plastic, metal, and other tough industrial waste. These shredders feature advanced shear cutting technology for efficient and precise material reduction.

Technical Parameters

Shredder ModelShaft Diameter (mm)Moving Knife Qty. (pcs)Max Capacity (kg/h)Motor Power (kW)Dimensions (L×W×H mm)
RTM-0600320×451280018.5×22960×880×2300
RTM-0800320×4516100022×23160×920×2400
RTM-10000400×5020200045×23360×980×2500
RTM-12000400×5024300055×23760×980×2550
RTM-16000500×6524500075×24160×1080×2600
RTM-20000600×7728800090×24600×1220×2800

Key Features of Double Shaft Shredders

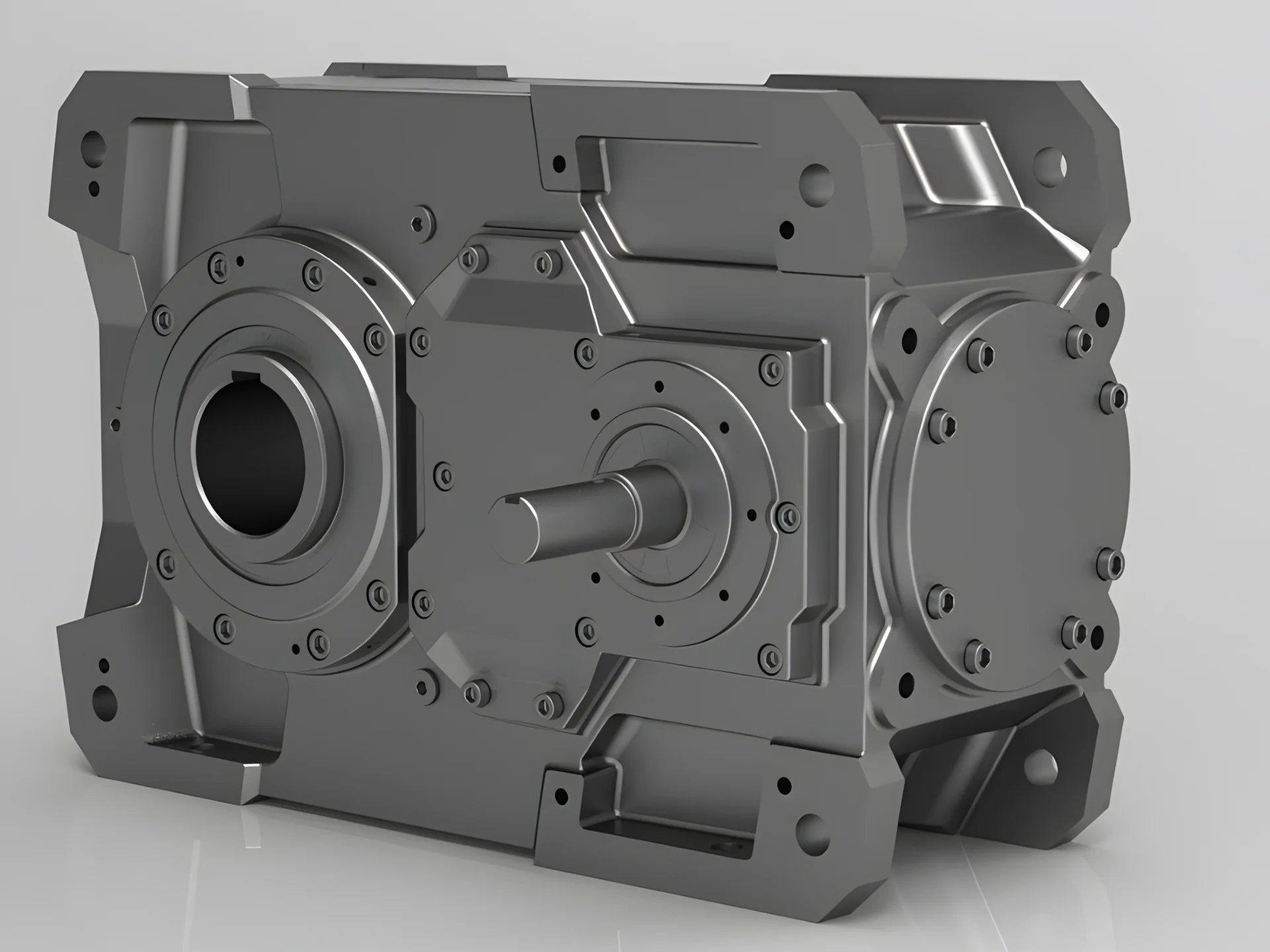

1. Smooth Speed Reduction

Motors and reducers are connected by belt pulley systems, which allow for smooth speed reduction, effectively protecting the motors and reducers from damage.

2. Advanced Coupling System

The drive system uses couplings, allowing for easy adjustment of reverse force and ensuring total structure stability during operation.

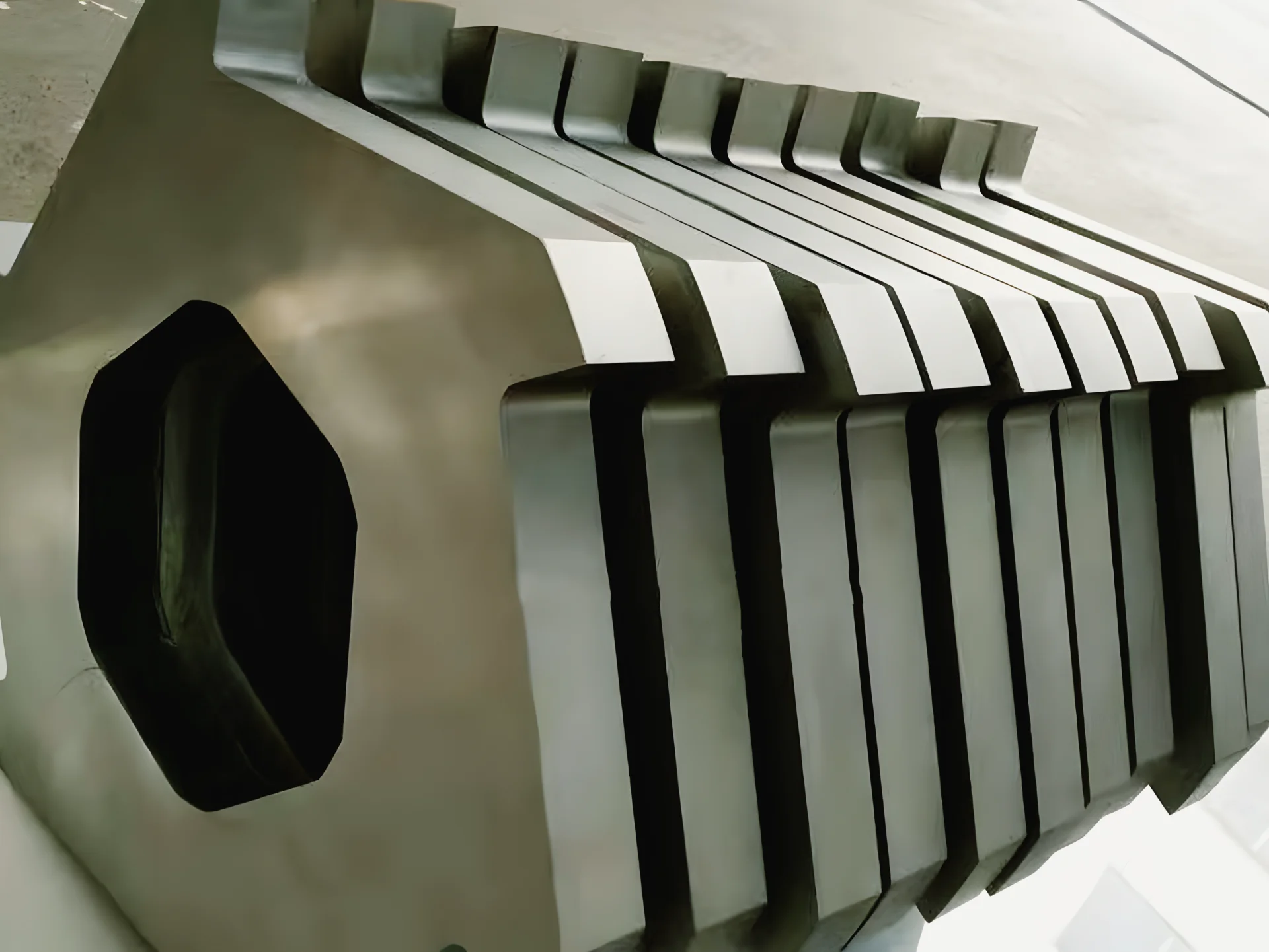

3. Customizable Knife Design

The knife thickness and design can be adjusted according to different material conditions, making it versatile for various shredding applications.

4. Siemens PLC Control System

Our shredders are equipped with Siemens PLC for easy, reliable, and safe control, ensuring smooth operation and optimal performance.

Applications of Double Shaft Shredders

1. Plastic Barrels and Bottles

Efficiently shreds large plastic barrels and bottles, making them easy to process for recycling or disposal.

2. Metal Drums and Cans

Designed to handle various metal waste, such as drums and cans, this shredder is perfect for tough materials.

3. Tires, Bumpers, and Roadblocks

Shreds rubber materials like tires, bumpers, and roadblocks, ensuring effective material reduction for industrial use.

4. Washer, Fridge, and Other Appliances

Appliances like washers and fridges are shredded easily for further recycling processes, reducing bulk and making transport more efficient.

5. Carcasses and Organic Waste

Capable of processing organic waste and carcasses, contributing to effective waste management and recycling.
