Friction Screw Washer

TECHNICAL SPECIFICATIONS

Model Motor Power Rotor Diameter Rotor Speed Material
LX-400 11KW 400mm 520RPM SUS304
LX-450 15KW 450mm 520RPM SUS304
LX-550 22KW 500mm 520RPM SUS304

Description

In today’s competitive market, ensuring the cleanliness and quality of recycled plastic materials is imperative for any recycling business. Here’s where the Friction Screw Washer comes into play, a cost-effective solution specifically engineered for the cleaning and transportation of plastic flakes, films, and regrind materials between machinery. This machine is designed along the lines of the high-speed friction washer system, albeit at a more budget-friendly price point. The primary cleaning mechanism here is the friction generated between materials, effectively scrubbing off dirt and other unwanted contaminants.

Working Principle

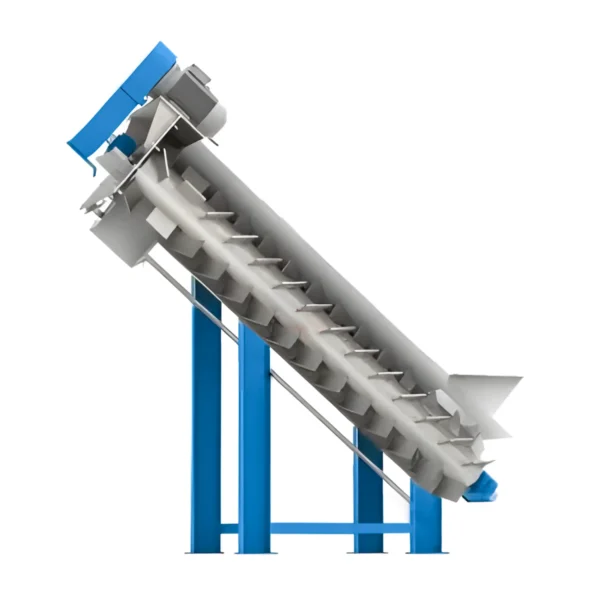

At the heart of the Friction Screw Washer lies a rotor adorned with numerous slanted paddles. Once set in motion, the rotor spins at a brisk pace of around 500-600 RPM, inducing the plastic materials inside to vigorously scrub against one another. Concurrently, water is sprayed through the filter nets, leading to the thorough separation and removal of soil, sand, and other contaminations.

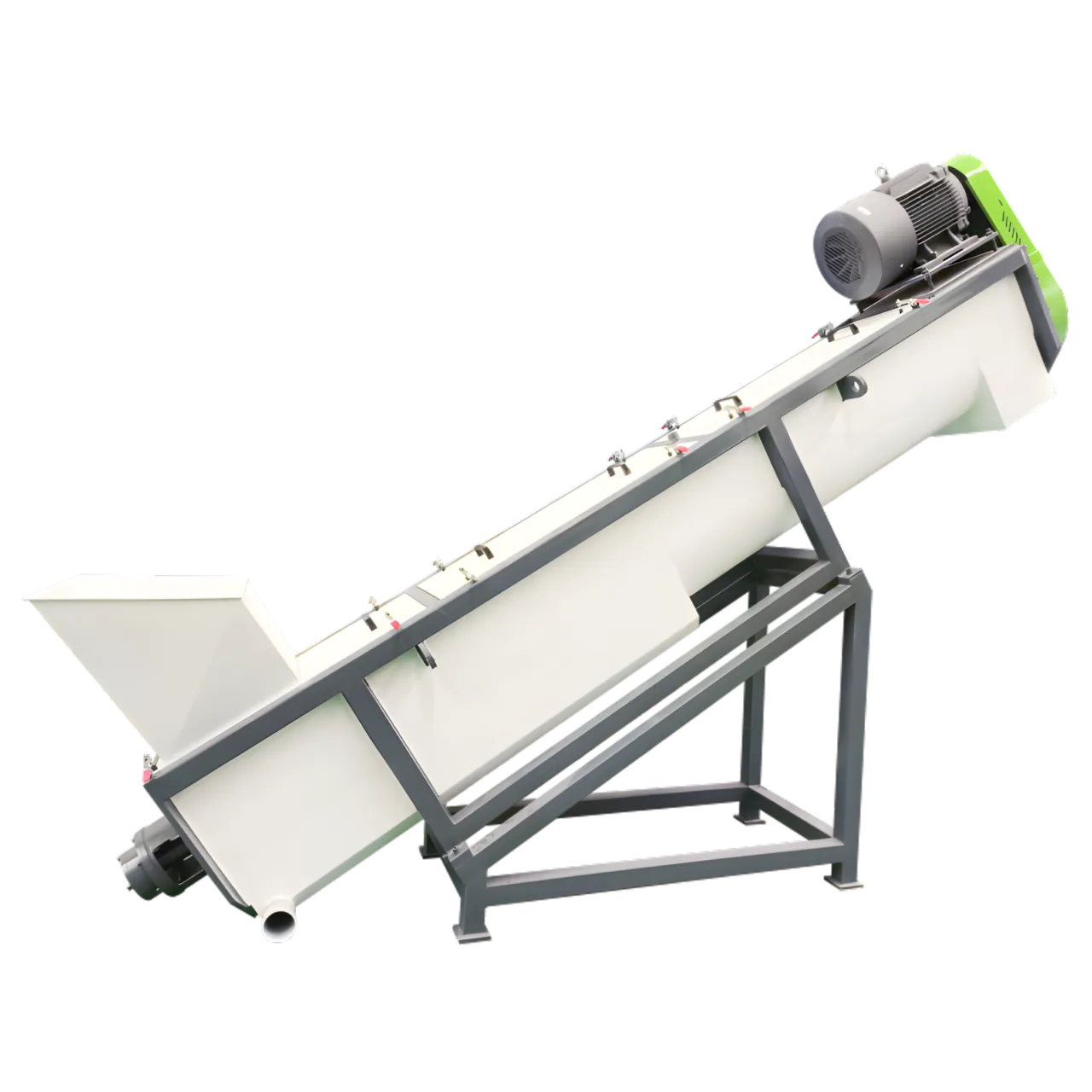

Friction Screw Washer-02

Product Features

  • Continuous Operation:
    The Friction Screw Washer is built for uninterrupted operation, ensuring a constant flow of cleaned materials from one machinery to the next, enhancing recycling efficiency.
  • Water Inlet and Drainage Outlet:
    Strategically positioned water inlet at the top and drainage outlet at the bottom facilitate automatic wastewater removal, minimizing manual intervention.
  • Optimal Cleaning:
    The special water spraying design, coupled with the high-speed screw, guarantees thorough cleaning, ensuring recycled materials are contaminant-free.
  • User-Friendly Operation:
    Its intuitive design ensures ease of use and maintenance, making it suitable for recycling facilities of all sizes.
