recycling machine

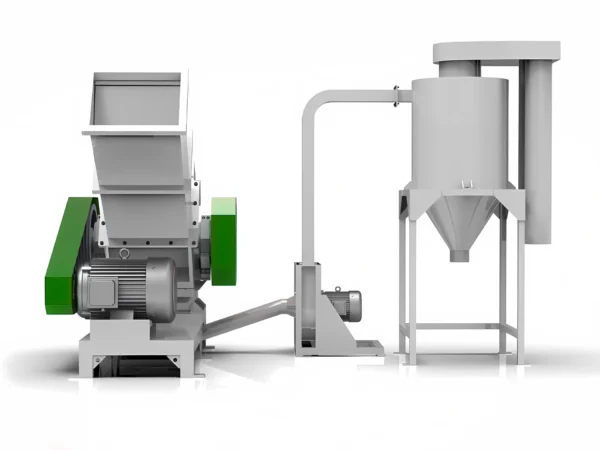

Industrial horizontal crusher for PVC pipes and profiles, featuring a large hopper and connected dust extraction system with a cyclone separator.

Horizontal Crusher For PVC Pipe and Profiles

Specifications

Crusher Model SWP400 SWP500 SWP560 SWP630 SWP730 SWP830 SWP900
Roller diameter (mm) 400 500 550 630 730 830 900
Fixed knife qty. (pcs) 2 2 4 4 4 4 4
Moving knife qty. (pcs) 5 5 10 10 10 14 14
Mesh Diameter (mm) 10 12 14 14 14 16 18
Capacity (kg/h) 250-350 450-500 550-650 650-750 700-800 800-900 1100-1200
Feeding mouth (mm) 400×300 430×500 470×500 520×550 650×700 800×800 900×900
Motor power (kW) 15 22 30 37 55 75 110
Host weight (kg) 1300 1900 2400 2800 4200 5300 6500
Dimensions (L×W×H) 2000×900×1800 2200×1050×2100 2300×1200×2350 2400×1300×2400 2600×1500×2700 2700×1680×2840 2700×1750×2950
Category: Tags: , , , , , , , , , , , ,

Description

Plane Knife Crusher

The Plane Knife Crusher is a high-efficiency machine designed for the crushing of various plastic materials, providing robust performance and low energy consumption.

Plane Knife Crusher

Plane Knife Crusher 1
Plane Knife Crusher 2
Plane Knife Crusher 3

Technical Parameters

  • Roller Diameter: 400-900 mm
  • Fixed Knife: 2-4 pcs
  • Moving Knife: 10-18 pcs
  • Capacity: 250-1200 kg/h
  • Motor Power: 15-110 kW
  • Dimensions (L×W×H): 2000×900×1800 to 3000×1680×2950 mm

Key Features

  • Unique Splayed Plane Knife Design

    This innovative design with a shear-type ladder knife base reduces resistance, increasing overall crushing efficiency.

  • Special Long & Slope Hopper

    The slope design ensures continuous feeding during crushing without blocking, making it ideal for long material processing.

  • Premium Blade Quality

    Blades are imported from Italy, with German-standard processing, ensuring long-lasting durability and extended service life.


Usage

  • PVC, PPR Plastic Pipes

    Used in the crushing of PVC and PPR plastic pipes for recycling and material reuse.

  • Plastic Profiles and Boards

    Efficiently handles plastic profiles and boards, reducing them into manageable sizes for further processing.

  • Plastic Windows and Doors

    Specially designed for crushing plastic window and door frames, reducing waste volume for recycling.

  • PE, PP Corrugated Pipes

    Processes corrugated pipes made of PE and PP, ensuring smooth and continuous operation without blockages.
