Plastic Bottle Recycling Machine

描述

Advanced PET Bottle Washing Line Working Principle

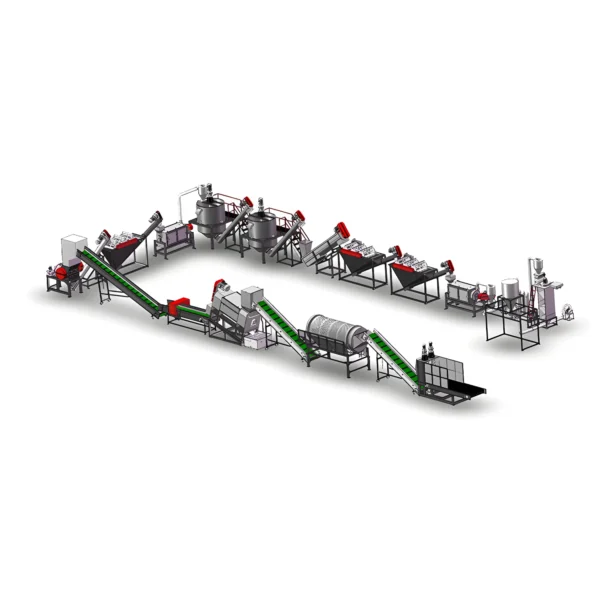

Our complete PET bottle washing line represents the latest in recycling technology, transforming baled PET bottles into high-purity flakes ready for reuse. The process begins with our heavy-duty Debaler Machine which efficiently breaks compacted bales while preserving bottle integrity. The optional Trommel with its precision screening system removes up to 95% of sand and dirt contamination before washing begins.

The system then progresses through our multi-stage washing process:

Pre-Washing Stage: Removes surface contaminants and prepares material for deep cleaning
Hot Caustic Wash: Our 85°C washing system effectively dissolves glues, labels, and food residues
Friction Washers: Utilize mechanical action with specialized cleaning agents for thorough cleaning
Rinsing System: Multiple stages ensure complete removal of cleaning solutions
Drying System: Our energy-efficient thermal drying achieves moisture levels below 1%

The entire process features automated controls and water recycling systems that reduce environmental impact while maximizing efficiency.

System Overview Video

Premium Output Specifications

Our PET bottle washing line produces industry-leading PET flakes that consistently meet or exceed international standards:

Physical Properties

Moisture: < 1%
Bulk Density: 0.28-0.32g/cm³
Particle Size: 12-16mm

Contaminant Levels

Total Impurities: < 300ppm
PVC Content: < 80ppm
Metal Content: < 15ppm

Polymer Quality

IV Loss: < 0.02 dl/g
PE/PP Content: < 150ppm
Ash Content: < 0.05%

System Configuration Options

Capacity	Footprint	Power Requirement	Water Consumption	Workforce
500kg/h Standard Line	42m × 10m	150kW	2m³/h (80% recycled)	3-5 operators
1000kg/h Production Line	50m × 15m	250kW	3m³/h (85% recycled)	6-8 operators
2000kg/h Industrial Line	60m × 18m	450kW	4m³/h (90% recycled)	8-10 operators
3000kg/h Turnkey Plant	100m × 20m	750kW	5m³/h (95% recycled)	10-12 operators

Comprehensive Support Package

Installation & Commissioning

Our team provides complete installation supervision and system commissioning to ensure optimal performance from day one.

Training Program

Comprehensive operator training covering normal operations, maintenance procedures, and troubleshooting.

Warranty Coverage

24-month warranty on all major components with optional extended service packages available.

Request Customized Solution

Contact our engineering team for a tailored PET washing line configuration to meet your specific production requirements and output goals.
