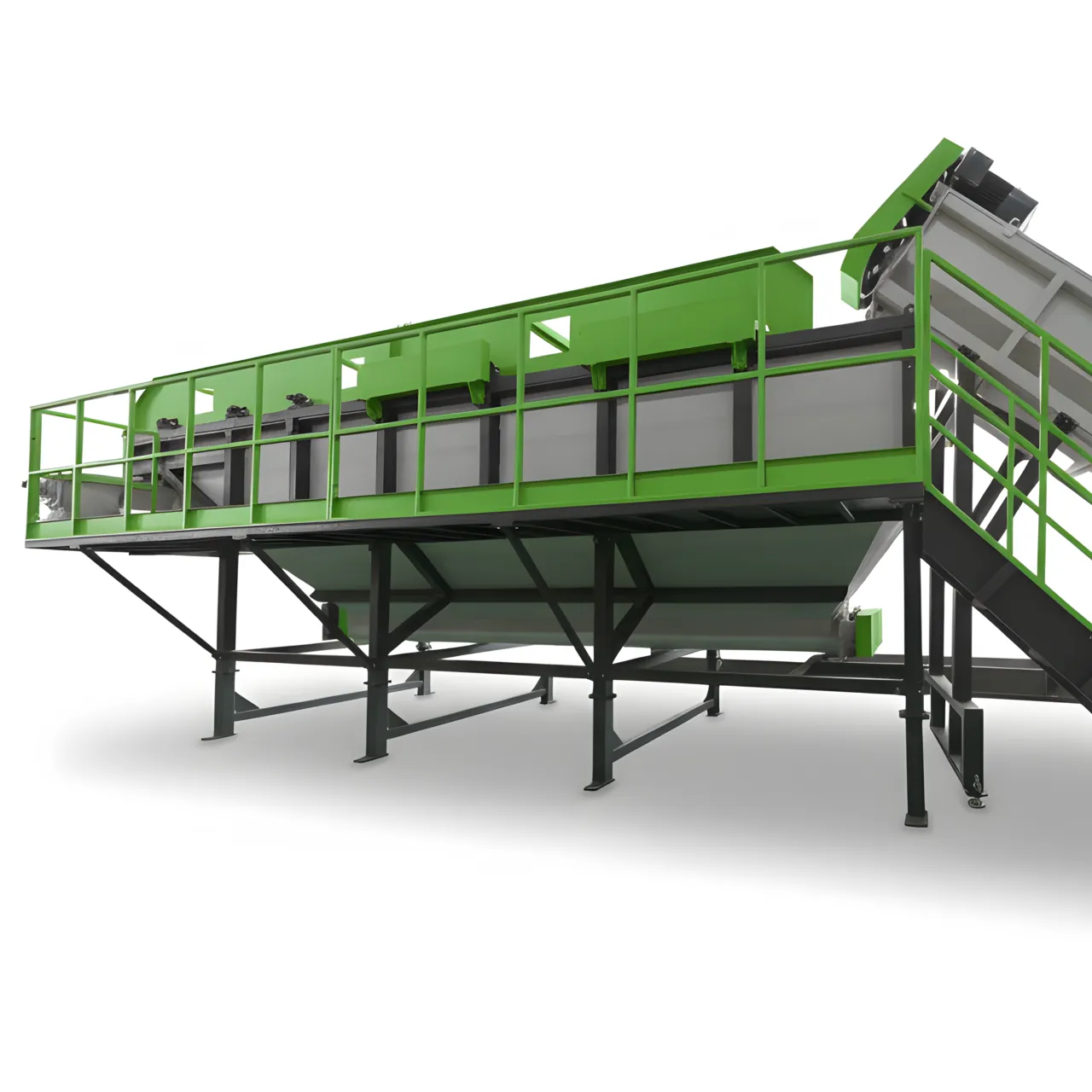

Plastic Floating Separation Tank

Our Plastic Floating Separation Tank provides a cost-effective and reliable solution for separating different types of plastics. By utilizing density differences in a water bath, it effectively separates materials like PP, PE, and PET, leading to higher quality recycled plastic and increased profitability.

Category: Wet Separators Tags: density-based separation, engineering solutions, flotation systems, industrial separation, recycling, sedimentation tanks, separation equipment, separation technology, sink-float separation process, Sink-Float Separation Tank, Waste Management, water treatment

Description

Description

Sink-Float Separation Tank

Advanced PET Recycling Solution

Core Advantages

⚙️

Efficient Separation

Utilizes water density for precise PET and PP/PE separation

🔧

Durable Design

304 stainless steel construction ensures long service life

⚡

High Capacity

Available in 4m and 6m lengths for various production needs

Product Overview

Sink Float Separation Tank

Sink Float Separation Tank Detail

Working Principle

How It Works

The separation process utilizes water’s density (1 g/cm³) as the medium. Materials denser than water sink, while lighter materials float.

➤ Rotating drums for floating material transport
➤ Screw conveyors for sunken PET collection
➤ Extended soaking time for optimal separation
➤ Corrosion-resistant stainless steel construction

Technical Specifications

Standard Model

Length: 4 meters
Material: Type 304 stainless steel
Processing capacity: Customizable
Warranty: 1 year limited

Extended Model

Length: 6 meters
Material: Type 304 stainless steel
Processing capacity: Customizable
Warranty: 1 year limited

Shredder Model	Shaft Diameter (mm)	Moving Knife Qty. (pcs)	Fixed Knife Qty. (pcs)	Max Capacity (kg/h)	Main Power (kW)	Dimensions (mm)
RTM-2455	275	24	1	400	22	3250×1500×2350
RTM-3063	275	30	1	500	30	3250×1750×2350
RTM-3980	275	39	1	700	37	4150×1900×2450
RTM-48100	315	48	1	900	45	4700×2550×2650
RTM-57120	315	57	1	1200	55	5350×2850×2760
RTM-75160	350	75	2	1300	75	5900×3050×2960

Ready to Upgrade Your Recycling Line?

Contact us for pricing and customization options
