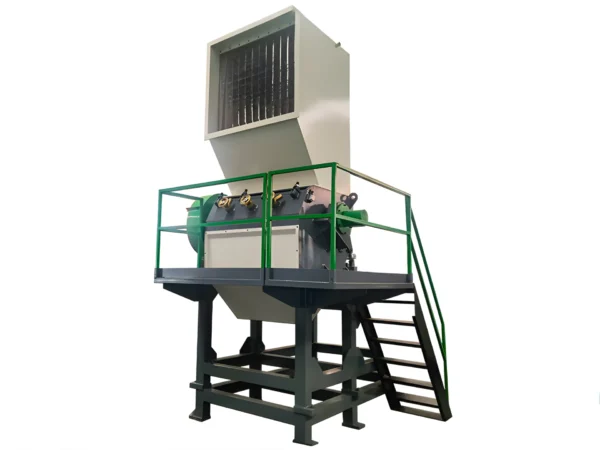

Premium Standard Plastic Granulator Machines
Efficient & Reliable Plastic Recycling Solution
Core Advantages
⚙️
Efficient Cutting System
Equipped with an open rotor and heavy-duty knives for precise cutting of plastic materials
🔧
Durable Construction
Rotor and stationary knives made of ultra-durable D2 steel for longevity
⚡
Versatile Applications
Effective for plastic bottles, films, and small rigid plastics
Product Overview
Working Principle
How It Works

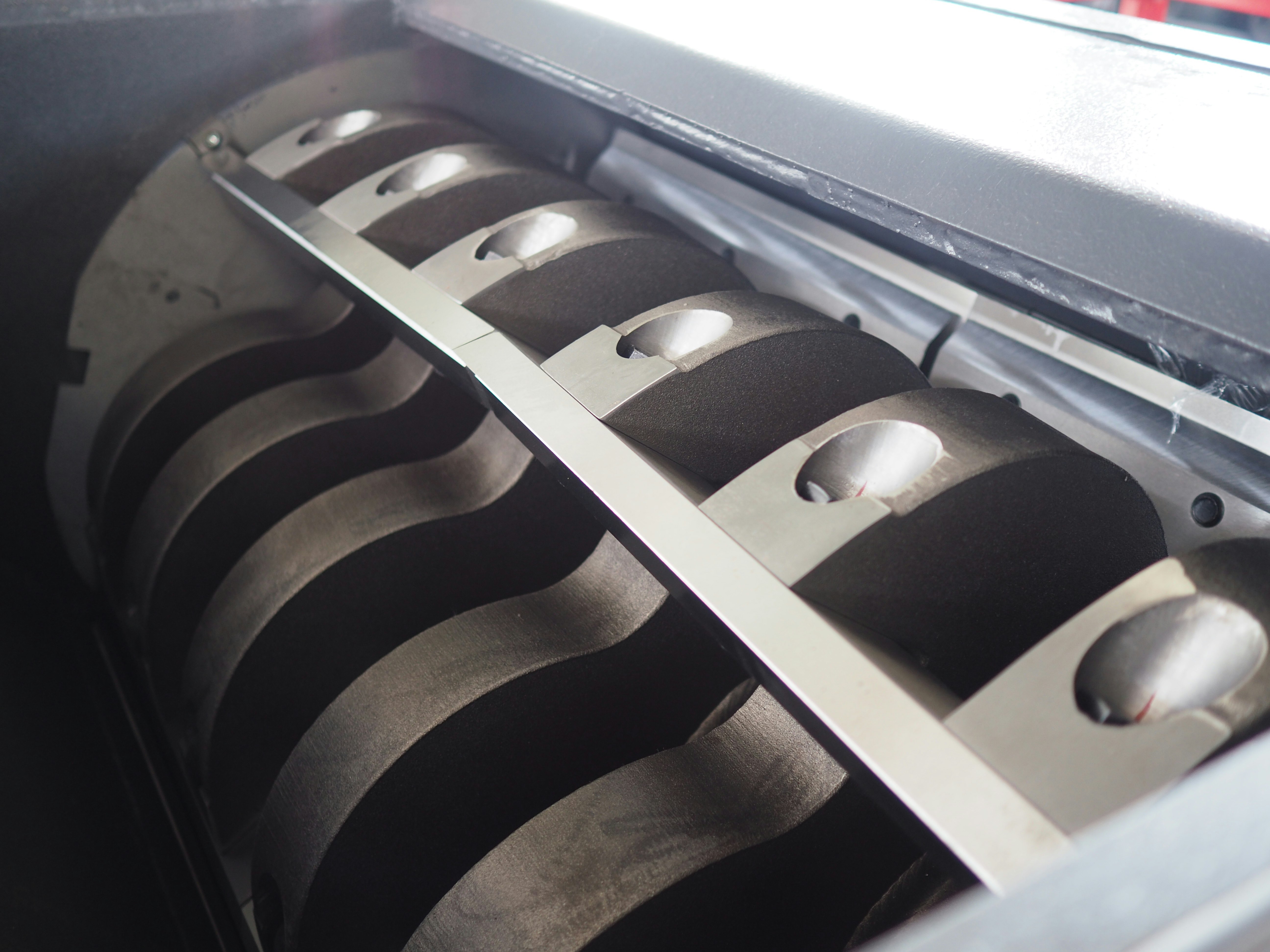

At the core of these premium machines is an open rotor equipped with heavy-duty knives. These knives, arranged in either a double-scissor cut or V-shape array, interact with stationary knives mounted within the cutting chamber. As the rotor spins at high speeds, the material is continuously cut until it is small enough to pass through a screen filter, ensuring consistent size and quality.
- 12 rotor and 3 stationary knives made of D2 steel
- Customizable screen filter ranging from 10mm to 100mm

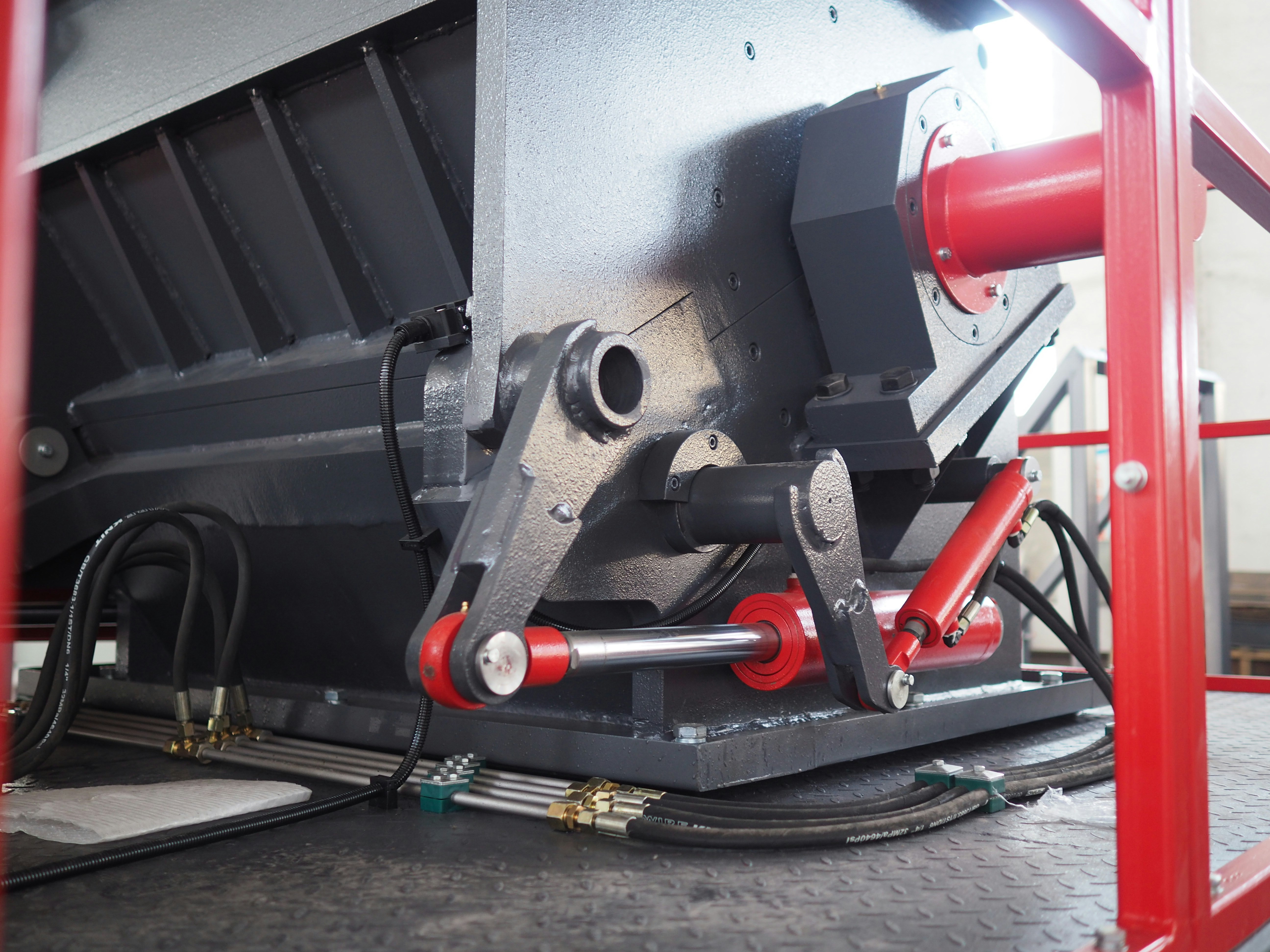

- Hydraulic-assisted access for easy maintenance
- Designed for grinding plastic bottles, films, and small rigid plastics
Technical Specifications
Standard Model
- Rotor and stationary knives: 12 rotor, 3 stationary (D2 steel)
- Screen filter: 10mm – 100mm (customizable)
- Hydraulic access for easy maintenance
- Warranty: 1 year limited
Applications
- Effective for grinding plastic bottles
- Suitable for plastic films and small rigid plastics
- Wet granulator models available for enhanced processing
- Ideal for integration in PET bottle and plastic film recycling lines
| Model | RTM-800 | RTM-1000 | RTM-1200 | RTM-1400 |
|---|---|---|---|---|
| Output (kg/h) | 400-600 | 900-1200 | 1400-1600 | 1800-2100 |
| Motor Power (kW) | 37 | 55-75 | 90-110 | 110-132 |
| Number of Rotary Knives (pcs) | 6 | 6 (10) | 10 | 10 |
| Number of Fixed Knives (pcs) | 4 | 4 | 4 | 4 |
| Main Shaft Rotation Diameter (mm) | Φ500 | Φ650 | Φ750 | Φ750 |
| Dimensions (mm) | 3000*2500*4160 | 3100*2650*4830 | 3700*3060*5300 | 3800*3300*5430 |
Ready to Upgrade Your Recycling Line?
Contact us for pricing and customization options
