Plastic recycling pipe drying system

The Pipeline Hot Air Drying System is an advanced recycling equipment designed to efficiently dry plastic flakes, films, or other recyclable materials after the washing process. It utilizes high-temperature hot air circulated through a pipeline to remove moisture, ensuring the materials are thoroughly dried and ready for further processing, such as extrusion or pelletizing. This system is energy-efficient, compact, and features precise temperature control to prevent overheating or damage to the materials. Ideal for recycling facilities, it enhances productivity, reduces drying time, and ensures consistent quality in the recycled output.

Category:

Description

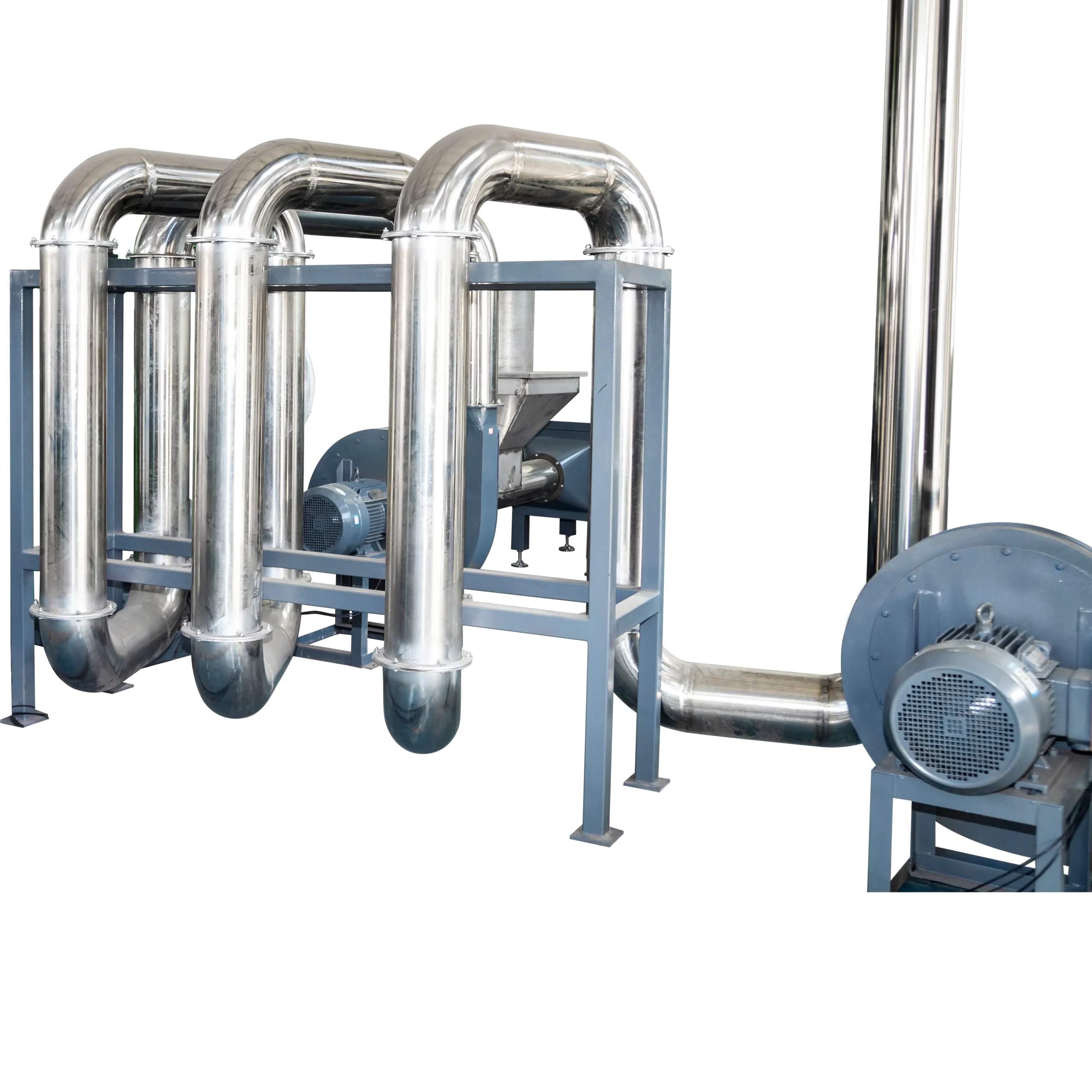

Pipeline Hot Air Drying System:

  • 1. Lowers the moisture content of the raw materials to below 2%.
  • 2. Equipped with insulation cotton to reduce energy loss.
  • 3. Fan power: 11 kW.
  • 4. Pipeline length: 30 meters.
  • 5. Stainless steel pipeline diameter: 219 mm, wall thickness: 2 mm.
  • 6. Heating power: 72 kW.
  • 7. Frame structure material is carbon steel: 60603 mm square tube.

Parts in contact with materials are made of SU304 stainless steel.
