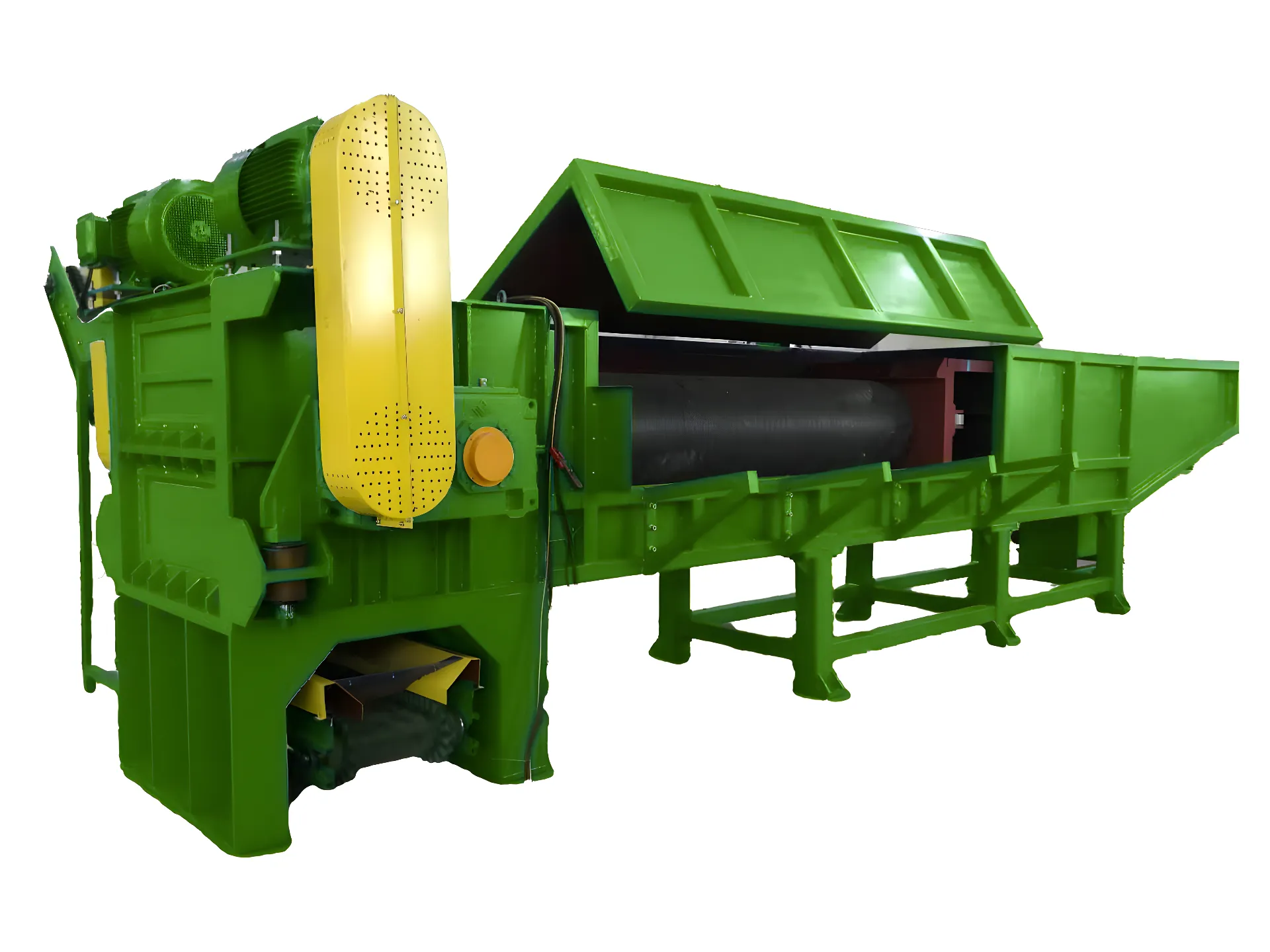

Green industrial plastic shredder machine designed for processing HDPE pipes, featuring a large feeding chamber and a heavy-duty cutting mechanism.

Plastic Shredder Machine For HDPE Pipe

The Plastic Shredder Machine for HDPE Pipe is a robust, high-efficiency solution designed to shred and recycle large-diameter HDPE pipes. Built for durability and precision, it reduces plastic waste into manageable sizes for further processing.
Category: Tags: , , , , , , , , ,

Description

HDPE Pipe Shredder Machine

The ultimate solution for shredding large plastic pipes, offering high efficiency, precision, and seamless operation for recycling facilities worldwide.

HDPE Pipe Shredder Machine

Plastic Shredder Machine for HDPE Pipe 1
Plastic Shredder Machine for HDPE Pipe 2
Plastic Shredder Machine for HDPE Pipe 3

Technical Parameters

  • Pipe Diameter: 250-650 mm
  • Pipe Length: Up to 5 meters
  • Motor Power: 75-150 kW
  • Shredding Capacity: 800-1500 kg/h
  • Regrind Size: 120mm x 40mm (further reducible to 20mm)
  • Dimensions: Customizable to fit your facility
Shredder Model Shaft Diameter (mm) Moving Knife Qty. (pcs) Maximum Capacity (kg/h) Motor Power (KW) Chamber Size (L × W) Host Weight (kg) Dimensions (L × W × H) (mm)
RTM-W600 350 × 2 63 800 30 + 37 6200 × 670 11000 12500 × 2500 × 1800
RTM-W800 450 × 2 108 1000 37 + 45 6200 × 870 14000 12800 × 2900 × 2000
RTM-W1000 550 × 2 132 1200 45 + 55 6200 × 1100 20000 13100 × 3260 × 2150
RTM-W1200 650 × 2 195 1500 55 + 75 6200 × 1300 23000 13100 × 3460 × 2300
RTM-W1600 430 × 4 400 1800 75 + 90 6200 × 1700 25000 13100 × 3700 × 2500

Key Features

  • Built for Large Pipes

    This shredder efficiently handles pipes up to 650 mm in diameter and 5 meters in length, providing a powerful solution for large-scale plastic recycling.

  • High Throughput Capacity

    Capable of processing up to 1500 kg of material per hour, ensuring optimal performance in busy recycling environments.

  • Horizontal Feeding Dock

    The horizontal feed system simplifies loading long pipes, supported by a hydraulic arm for continuous and seamless operation.

  • Optimal Size Reduction

    Regrind sizes of 120mm x 40mm, with further reduction to under 20mm using an additional granulator.

Usage

  • HDPE, PVC, PPR Plastic Pipes

    Ideal for efficiently shredding large-diameter pipes used in water and gas supply industries.

  • Plastic Profiles and Boards

    Handles various plastic profiles, reducing them into manageable sizes for recycling.

  • Customized Solutions

    This shredder can be customized to meet the specific requirements of your recycling facility, whether it’s increased capacity or size adjustments.
