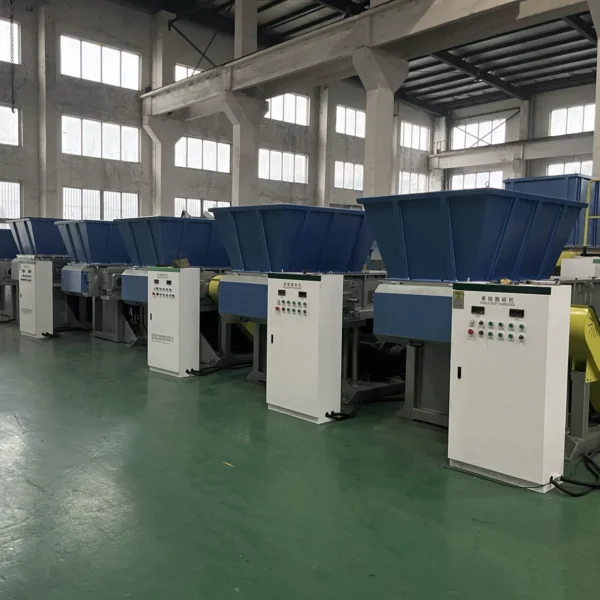

Textile Waste Single Shaft Shredder

Textile waste is a growing global challenge. Factories, recycling centers, and fashion brands face mounting pressure to manage textile waste responsibly. A Textile Waste Single Shaft Shredder is a powerful solution to this problem. This machine transforms bulky textile waste into manageable, reusable materials, streamlining recycling processes and reducing landfill dependency.

Category:

Description

Single-Shaft Shredder Overview

The single-shaft shredder consists of a motor, a reducer with rigid gears, a rotary shaft, imported rotary knife, fixed knife, frame, working platform, hydraulic ram, and an independent electrical control cabinet.

Fixed knives are installed on the frame behind the solid rotary shaft where the moving knives are bolted. Moving knives are specially designed into a four-angle shape, allowing customers to change the angle for recycling when blunt. Moving knives are installed by screws, which is convenient for future maintenance.

The single-shaft shredder is controlled by an independent electrical cabinet equipped with a PLC system. The machine features start, stop, and reverse functions. It is also fitted with an automatic overload return mechanism to prevent damage to working parts.

Detailed Technical Parameters

  • Model: RTM-S800
  • Purpose: Used for shredding waste produced in manufacturing, increasing the density of material accumulation for ease of future use or processing.
  • Features:
    • Main shaft is a single solid piece, no splicing.
    • Uses H series reducer as the drive power to increase torque.
    • Cutting tools made from high-strength alloy steel, suitable for shearing various plastic objects.
    • Drive deeply connected to the main shaft, reducer equipped with a shock absorber to mitigate buffering forces.
    • PLC automated control with overload protection, automatic reverse, and forward functions.
    • Feed cart uses a hydraulic system, providing stable feed speed with adjustable advance rate.
  • Machine Parameters:
    • Effective length of rolling cutter: 600mm
    • Shredding chamber size: 550mm x 580mm
    • Cutter shaft diameter: 230mm
    • Blade size: 40×40 (mm)
    • Blade material: SKD-11
    • Number of moving blades: 30
    • Number of fixed blades: 1
    • Cutter shaft processing method: Integrated solid CNC processing
    • Main shaft material: Tempered 45 steel
    • Total thickness of the main wall plate: 20mm (wall plate Q235B)
    • Bearing seat type: External frame
    • Output: 200-300kg/h
  • Power Section:
    • Motor power: 45kw
    • Motor manufacturer: Domestic
    • Reducer output speed: 81 rpm
    • Connection type: Direct connection
  • Control Section:
    • Control system: PLC (Delta)
    • Electrical components: Contactors, overload protectors (Siemens)
    • Control buttons: Schneider
    • Hydraulic power: 3kw
    • Maximum pressure: 21Mpa
    • Cooling method: Air cooling
