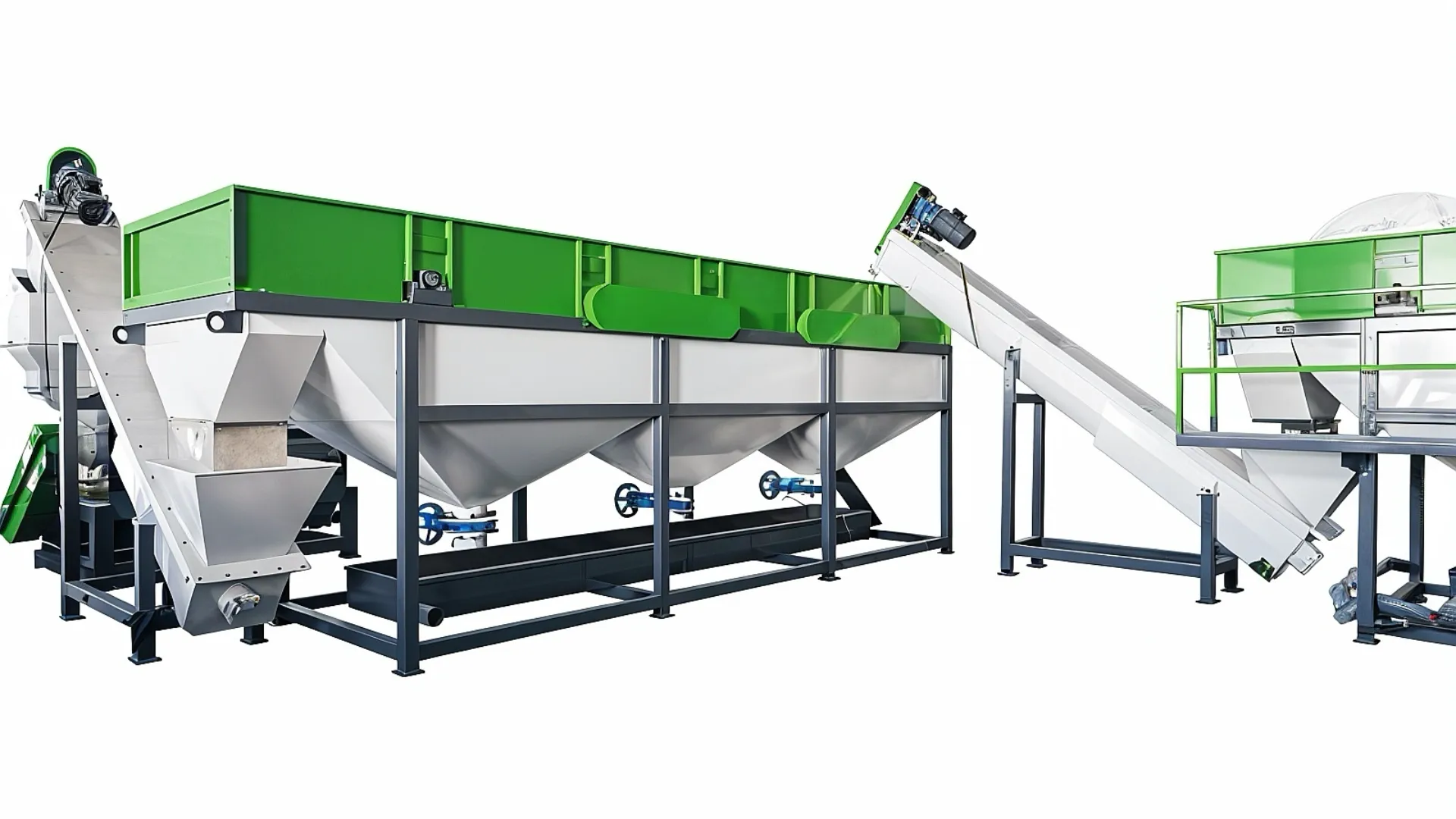

Recycling Washing Line for PE Film, Woven Bags, and BOPP

BOPP

BOPP

BOPP (Biaxially Oriented Polypropylene) is extensively used in packaging films, tapes, and labels due to its transparency, high tensile strength, and resistance to moisture.

Woven Bags

Woven Bags

Woven bags are widely used for packaging agricultural products, fertilizers, and construction materials, offering durability, flexibility, and cost-effectiveness.

PE Film

PE Film

PE film is commonly used in the production of stretch wraps, agricultural films, and plastic bags due to its excellent flexibility, impact strength, and moisture resistance.

Non-woven Fabrics

Non-woven Fabrics

Non-woven fabrics are used in a variety of applications such as hygiene products, medical textiles, and filters, appreciated for their lightweight, strength, and versatility.

Flexible Plastic

Flexible Plastic

Flexible plastic materials, including films and wraps, are used in packaging and insulation, known for their adaptability, lightweight properties, and barrier capabilities.

Laminated Film

Laminated Film

Laminated film is used in flexible packaging for food, pharmaceuticals, and consumer goods, offering enhanced barrier properties, durability, and aesthetic appeal.

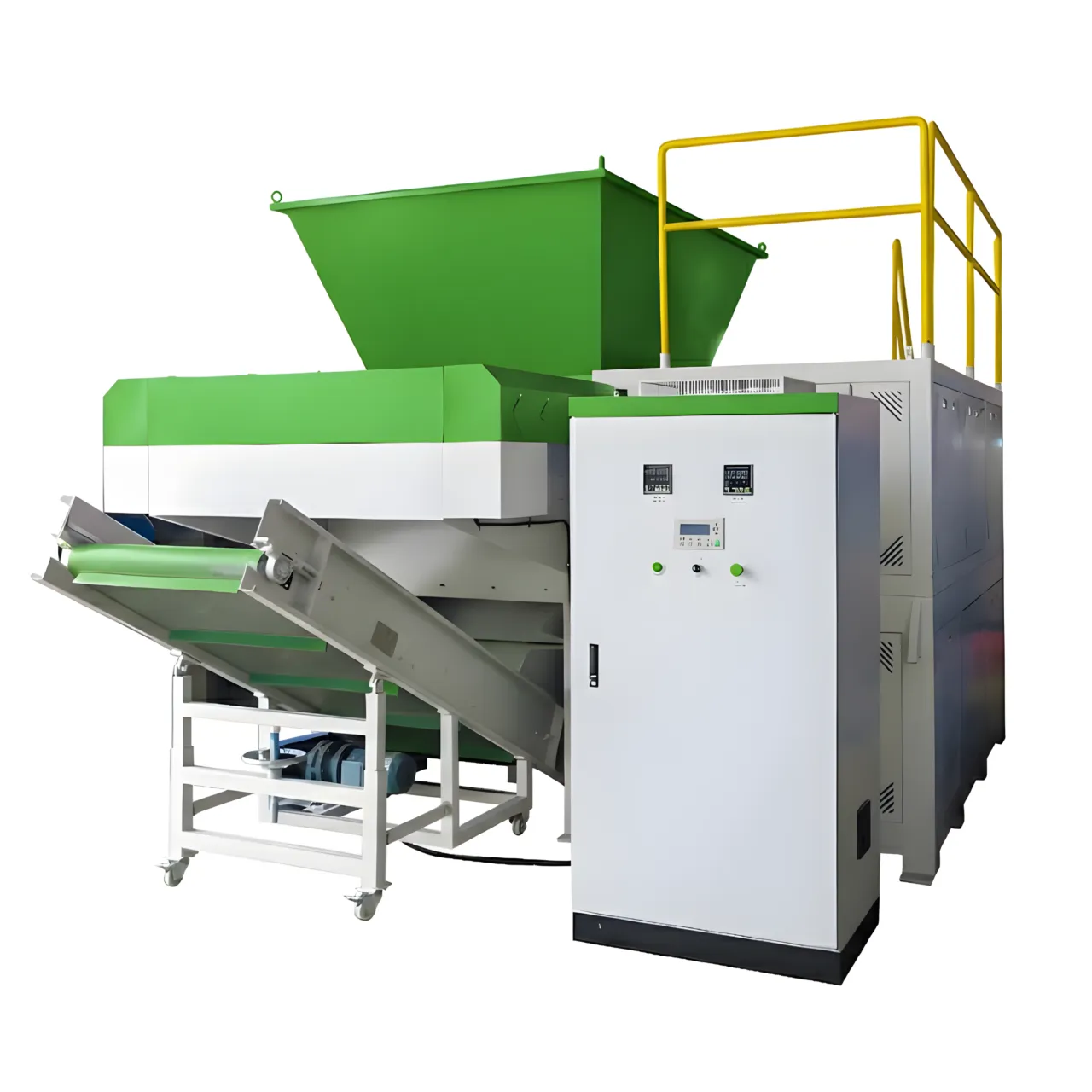

Single Shaft Shredder Specifications

The single shaft shredder is designed for efficient shredding of solid wastes, including waste fabrics and domestic garbage. It features high capacity and a robust design suitable for various applications.
  • Capacity: 500-5000kg/h (adjustable based on material conditions)
  • Material Processed: Waste fabrics, domestic garbage, etc.
  • Power Supply: 3-phase 380V 50Hz, 123.2KW total power
  • Hydraulic System: Hydraulic ram driven by 11KW power, water-cooled
Key Features:
  • Single shaft with high-efficiency shredding capability
  • Equipped with rotary and fixed knives for precise cutting
  • Hydraulic ram for consistent material feed
  • PLC control with start, stop, and reverse functions
  • Automatic overload return mechanism for machine safety
Single Shaft Shredder


Wet Plastic Granulator Specifications

The Wet Plastic Granulator is an upgraded version of our general-purpose granulators, designed for efficient cutting and pre-cleaning of plastic bottles, films, and rigid materials.
  • Rotor Speed: 400-600 RPM
  • Blade Material: D2 high-carbon, high-chromium steel
  • Cutting Arrangements: V-shape or double-scissor cut
  • Screen Filter Size: 10mm – 100mm (customizable)
Primary Functions:
  • Cutting plastic materials
  • Pre-cleaning and loosening contaminants
  • Reducing dust buildup in recycling plants
  • Extending blade and machine durability
Wet Plastic Granulator


Friction Washer Specifications

The Friction Washer is designed for efficient cleaning and transportation of plastic flakes, films, and regrind materials.
  • Rotor Speed: 500-600 RPM
  • Water System: Top inlet, bottom outlet
  • Operation: Continuous
  • Cleaning Method: Friction-based
Primary Functions:
  • Cleaning plastic materials
  • Transporting materials between machinery
  • Removing soil, sand, and other contaminants
Friction Washer


Floating Separation Tank Specifications

Our Floating Separation Tank is designed to efficiently segregate PP and PE plastics from co-mingled streams while simultaneously cleaning the materials for further processing.
  • Interior Width: 1000mm – 1800mm
  • Total Length: 4 – 7 meters
  • Interior Material: Type 304 Stainless Steel
  • Exterior Frame: Carbon Steel
  • Paddle Motors: 1.5KW*2 (frequency control)
Key Features:
  • “W” shaped bottom for improved efficiency
  • Dual-section design for better contamination management
  • Water-based separation for PP and PE plastics
  • Simultaneous cleaning and separation
Floating Separation Tank


Centrifugal Dryer Dewatering Specifications

Our Centrifugal Dryer Dewatering machine is a highly efficient, low energy consuming equipment designed to partially remove water from plastic materials using centrifugal force. It’s an essential first step in PE film and PET bottle washing lines.
  • Rotation Speed: Approximately 1,000 RPM
  • Moisture Reduction: To approximately 20-30%
  • Main Components: Long shaft with paddles, mesh screen tunnel
  • Casing: Metal container with external electric motor
Key Features:
  • High efficiency with low energy consumption
  • Handles material with high water content
  • Suitable for PET flakes, PP/PE flakes, and other plastic regrinds
  • Patented design doubles as a friction washer for cooling and cleaning
  • Water recycling capability
Centrifugal Dryer Dewatering


Hot Washer Specifications

Our advanced continuous Hot Washer system offers unparalleled efficiency and cleaning abilities for PET flakes, HDPE flakes, and other plastic regrinds. It’s designed for continuous operation and is extremely effective at removing oils and other stubborn contaminants in a single wash cycle.
  • Operation Mode: Continuous
  • Washing Method: Hot chemical bath
  • Internal Mechanism: High-speed rotary paddles
  • Suitable Materials: Plastic Film
Key Features:
  • Continuous operation for higher efficiency
  • Effective removal of oils and stubborn contaminants
  • Single wash cycle for most applications
  • Friction-based cleaning for thorough results
  • Can be combined with cold washing system for enhanced results
Hot Washer

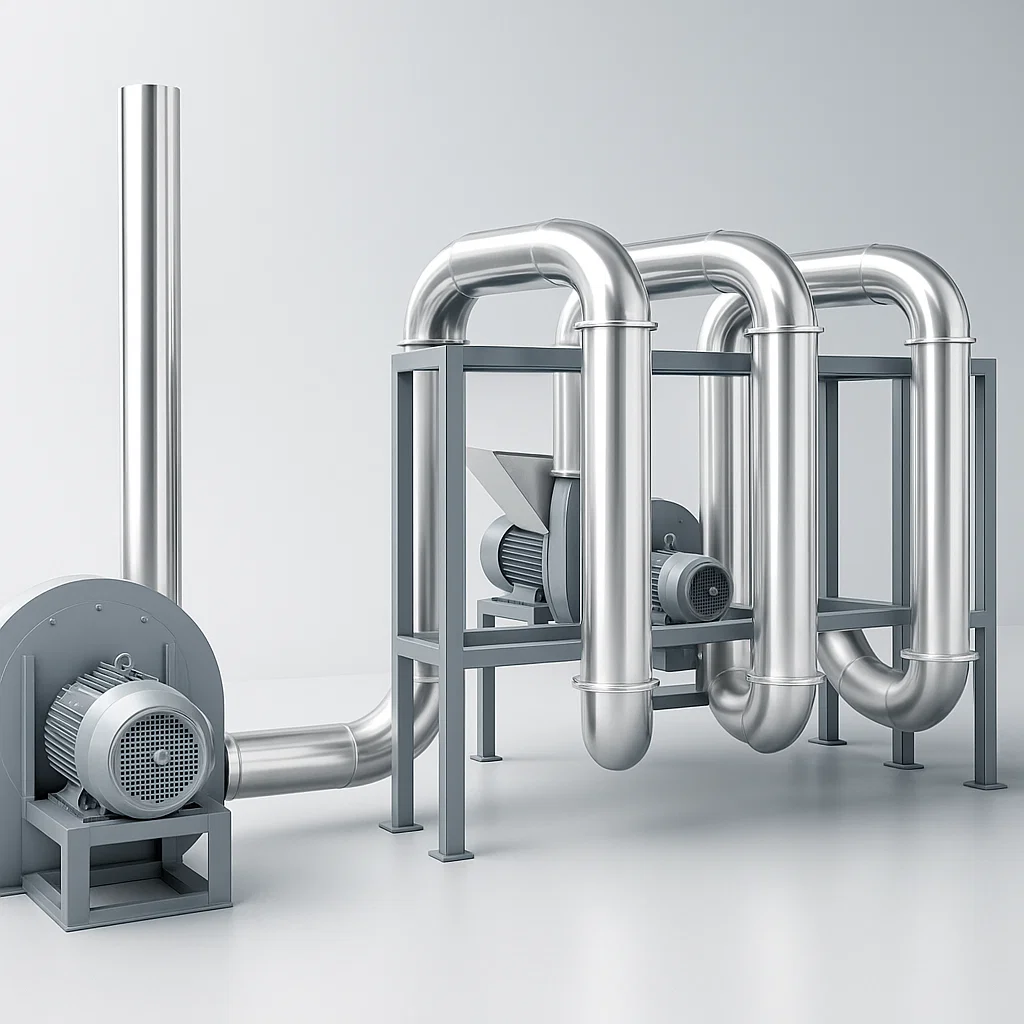

Thermal Dryer Specifications

Our Thermal Dryer is designed for efficient moisture removal through dehydration, ideal for plastic film and PET washing lines. It’s an essential final step in reducing moisture levels to below 3%.
  • Model: RSJ800
  • Blower Power: 5.5 KW
  • Heating Power: 36 KW
  • Pipe Diameter: ⌀159mm
  • Pipe Material: Type 304 Stainless Steel
Key Features:
  • Continuous drying process
  • Integrated cyclone separator
  • Hot air dehydration system
  • Efficient dust and fines removal
  • Scalable design (can use multiple units in series)
Thermal Dryer


Zig-Zag Air Classifier Specifications

Our unique Zig-Zag Air Classifier is designed to separate lightweight contaminants from heavier plastics, making it an essential component in PET bottle recycling lines. It also serves as an effective partial drying solution for the material stream.
  • Separation Medium: Air
  • Sorting Method: Weight-based separation
  • Primary Application: PET bottle recycling
  • Contaminants Removed: Paper labels, plastic labels, and other lightweight materials
Key Features:
  • Efficient separation of lightweight contaminants
  • Partial drying of material stream
  • Versatile application in weight-based material separation
  • Unique zig-zag design for enhanced separation
  • Dual-exit system for separated materials
Zig-Zag Air Classifier


Benefits of Our Technology

Eco-Friendly

Reduced water and energy consumption

High Output Quality

Superior cleaning for high-grade recycled materials

Versatile

Capable of processing various rigid plastic types

Contact Us

Ready to upgrade your plastic recycling capabilities? Contact our team of experts today for a customized solution.
