2000KG/H LDPE PE Film Recycling Washing Line
This advanced washing line offers high processing capacity, ensuring clean and quality recycled materials. Ideal for eco-conscious businesses, our solution contributes to sustainable practices while maximizing productivity. Learn more about the technology, features, and benefits of our LDPE recycling system today.
描述
High-Efficiency PE/PP Film Washing & Recycling Line
Elevate your recycling operations with our complete PE/PP Film Washing Line. This robust system is engineered to transform highly contaminated plastic films into clean, high-purity flakes ready for pelletising. By investing in this technology, you can increase profitability, reduce operational costs, and produce premium-quality recycled materials for a circular economy.
Versatile Applications
Our film recycling solution is expertly designed to process a diverse range of post-consumer and post-industrial flexible plastics, including:
- Post-Consumer Packaging: Efficiently recycles printed and non-printed PE/PP bags, shopping bags, and packaging films.
- Industrial & Bulk Bags: Processes tough materials like woven PP sacks and FIBC (jumbo bags).
- Agricultural Films: Handles heavily soiled materials such as greenhouse covers, mulching films, and irrigation tubing.

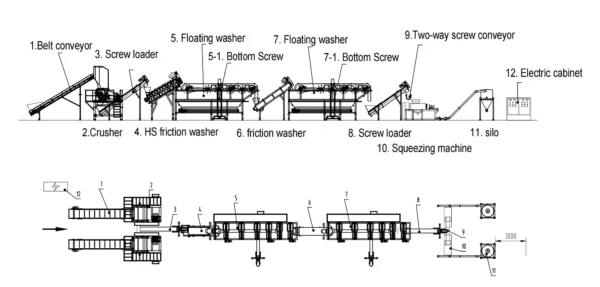

Core Components of the Production Line
This is a fully integrated system where each machine performs a critical function to deliver a consistent, high-quality output. The standard 2000kg/h line includes:
Belt Conveyor: Provides a steady, controlled feed of raw material into the system, ensuring consistent throughput.
Crusher / Shredder: Performs initial size reduction, breaking down bulky films into smaller, uniform flakes essential for thorough cleaning.
High-Speed Friction Washer: Utilises high rotational speeds to create intense friction, scrubbing flakes to remove stubborn dirt, paper labels, and other surface contaminants.
Floating Washer Tank: Separates materials based on density. Polyolefins (PE, PP) float while heavier contaminants like soil, sand, and glass sink for effective removal.
Film Squeezing Dryer: A critical dewatering stage that uses mechanical pressure to squeeze out water, reducing moisture content to below 3% and densifying the material for easy feeding into a pelletiser.
Transport Screws & Loaders: A series of robust screw conveyors that automate the transfer of material between each stage, minimising manual handling.
Central Electric Cabinet: A user-friendly, integrated control panel that manages all motors and operations for the entire line, ensuring safety and efficiency.
Technical Specifications
| Model | Output (kg/h) | Installed Power (kW) | Water Consumption (t/h) | Personnel Required |
|---|---|---|---|---|
| RTM-SP300-WL | 300 | 130-160 | 2-3 | 2-3 Operators |
| RTM-SP500-WL | 500 | 210-260 | 4-6 | 2-3 Operators |
| RTM-SP1000-WL | 1000 | 300-350 | 7-10 | 3-5 Operators |
| RTM-SP2000-WL | 2000 | 400-460 | 10-15 | 4-6 Operators |
Warranty & After-Sales Support
We stand behind the quality of our engineering. All recycling machinery includes a 1-year limited warranty on all non-wear components. Our commitment extends to providing dependable after-sales service and technical support to ensure your operation runs smoothly.
Request a Customised Quote
To receive the latest pricing, lead times, and a solution tailored to your specific material and output requirements, please complete the form below. Our specialists will contact you to discuss your project in detail.
